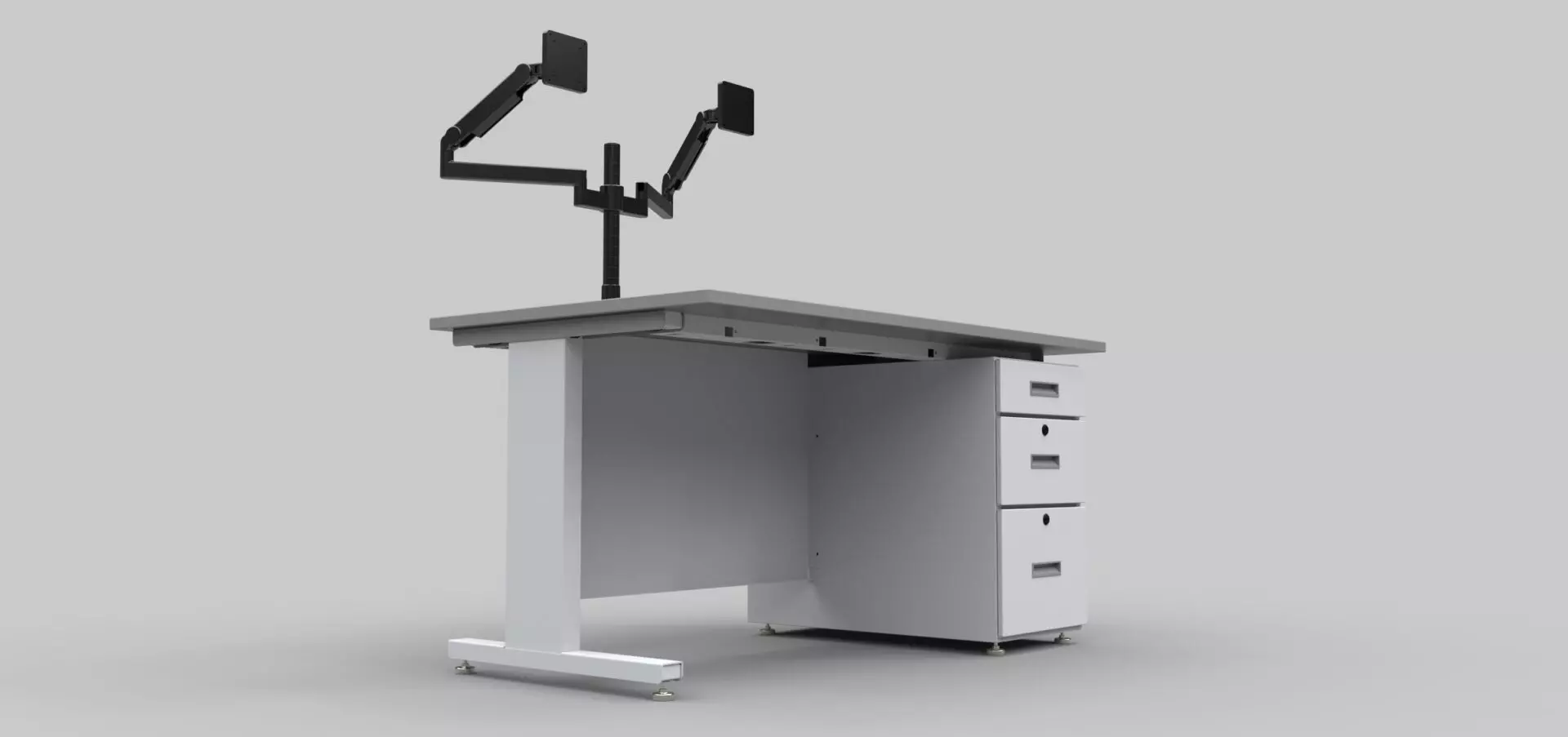

CompuDesk® Gen2
The CompuDesk® Gen2 is a redesign that enhances the most practical and valuable features from its predecessor and delivers increased functionality through thoughtful development. The Gen2 is a redesigned benchtop workstation that features a few material upgrades, including a new desktop surface that includes a PVC band which lines the edge of the workspace surface and is color coordinated with the customer’s laminate color, improving durability and aesthetics.
Emcor’s CompuDesk® Gen2 has improvements to both the electronic (rack-mounting) and utility (drawer) pedestals. The new utility pedestals have added handles and locks for storage access and security. Electronic pedestals are available with new cable management solutions that can augment the integrated cable routing throughout the desk’s tubed architecture. New designs to the channels underneath provide more thorough access to cables and accessories for more streamlined workflow capabilities.
Need a Custom Workstation?
Like all EMCOR products, the CompuDesk® Gen2 can be modified to your specific needs. Contact Emcor to learn more about our design services and what we have to offer.
Features
Features
- Compatible with ESQ® Series accessories
- Durable desktop with matching PVC edge
- Integrated channels for cable routine
- Utility locking drawer, handles
- 14U, 30.75” Depth Rack Option (EIA 310-E)
- 1” desktop thickness
Dimensions
- 30.5 ±0.25 (H)
- 60” or 72” (W)
- 33” (D)
Design
All Gen2 CompuDesks are built on the original Series III design template, bringing the pedestals down to the ground for maximized storage and rack-mounting space.
The workstation now allows monitor mounting capability in both clamp-on and grommet-mounted configurations offered by EMCOR. Plug-in strips and grounding bus bars can be easily added on with embedded accommodations. The workstation is compatible with all ESQ® accessories and has a 600 lb. topside load rating.
The CompuDesk® Gen2 aims to provide the most value in a workstation available anywhere, giving our customers the ability to tune up the COTS offering with as many features as necessary. Convenience, functionality, and survivability are integral to the engineering process required by this redesign, and we’re excited to breathe new life into an old fan favorite.
Configurations
| Drawing # | Part # | Pedestal | Width | Height (inches) |
|---|---|---|---|---|
| 467804 | DK-3360-EO | RM Pedestal Left | 60 | 30.5 |
| 467800 | DK-3360-OE | RM Pedestal Right | 60 | 30.5 |
| 467798 | DK-3360-OO | No pedestals | 60 | 30.5 |
| 467802 | DK-3360-OU | Drawer Right | 60 | 30.5 |
| 467806 | DK-3360-UO | Drawer Left | 60 | 30.5 |
| 467808 | DK-3372-EE | RM Both Sides | 72 | 30.5 |
| 467805 | DK-3372-EO | RM Pedestal Left | 72 | 30.5 |
| 467810 | DK-3372-EU | RM Ped Left/Drawer Right | 72 | 30.5 |
| 467801 | DK-3372-OE | RM Ped Right | 72 | 30.5 |
| 467799 | DK-3372-OO | No pedestals | 72 | 30.5 |
| 467803 | DK-3372-OU | Drawer right | 72 | 30.5 |
| 467811 | DK-3372-UE | Drawers left/RM Right | 72 | 30.5 |
| 467807 | DK-3372-UO | Drawers Left | 72 | 30.5 |
| 467809 | DK-3372-UU | Drawers Both Sides | 72 | 30.5 |
Like all EMCOR products, the CompuDesk® Gen2 can be modified to your specific needs. Contact Emcor to learn more about what we have to offer.
CompuDesk® Gen2 Compatible Parts
| Select | Part Number | Description | Files | Read More |
|---|---|---|---|---|
| ABA-05 421855 |
3U Panel Width Reducer Bracket - 24" EIA to 19" EIA | DWG STP |
||
|
Product Type Mounting Rails and Straps Used Where Front, Rear Requires Rear Attach Point Yes Style Panel Width Reducer Bracket Material 14-gauge Steel Finish Textured Powder Paint EIA Width 24 U 3 Fits Frame Depth Any Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint Yes (Select Color) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| ABA-07 421856 |
4U Panel Width Reducer Bracket - 24" EIA to 19" EIA | DWG STP |
||
|
Product Type Mounting Rails and Straps Used Where Front, Rear Requires Rear Attach Point Yes Style Panel Width Reducer Bracket Material 14-gauge Steel Finish Textured Powder Paint EIA Width 24 U 4 Fits Frame Depth Any Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint Yes (Select Color) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| ABA-08 421857 |
5U Panel Width Reducer Bracket - 24" EIA to 19" EIA | DWG STP |
||
|
Product Type Mounting Rails and Straps Used Where Front, Rear Requires Rear Attach Point Yes Style Panel Width Reducer Bracket Material 14-gauge Steel Finish Textured Powder Paint EIA Width 24 U 5 Fits Frame Depth Any Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint Yes (Select Color) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| ABA-10 421858 |
6U Panel Width Reducer Bracket - 24" EIA to 19" EIA | DWG STP |
||
|
Product Type Mounting Rails and Straps Used Where Front, Rear Requires Rear Attach Point Yes Style Panel Width Reducer Bracket Material 14-gauge Steel Finish Textured Powder Paint EIA Width 24 U 6 Fits Frame Depth Any Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint Yes (Select Color) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| ABA-12 421859 |
7U Panel Width Reducer Bracket - 24" EIA to 19" EIA | DWG STP |
||
|
Product Type Mounting Rails and Straps Used Where Front, Rear Requires Rear Attach Point Yes Style Panel Width Reducer Bracket Material 14-gauge Steel Finish Textured Powder Paint EIA Width 24 U 7 Fits Frame Depth Any Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint Yes (Select Color) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| ALDX-XXX-180019 399661 |
Kit for Mounting Levelers to Riser Bases (Levelers Included) | DWG STP |
||
|
Product Type Casters and Levelers Requires Rear Attach Point No Style Leveler Kit Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant Yes REACH Compliant Yes |
||||
| APNA-0119-NP 467278 |
1U Nameplate - 19" EIA | STP | ||
|
Files: STP Product Type Panels - Specialty Used Where Front, Rear Requires Rear Attach Point No Style Name Plate EIA Width 19 U 1 Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant Yes REACH Compliant Yes |
||||
| APNA-0124-NP 467281 |
1U Nameplate - 24" EIA | STP | ||
|
Files: STP Product Type Panels - Specialty Used Where Front, Rear Requires Rear Attach Point No Style Name Plate EIA Width 24 U 1 Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant Yes REACH Compliant Yes |
||||
| ARFA-XXX-000319 396180 |
2U Filter - 19" EIA Use with Vent Grille or Vent Panels | STP | ||
|
Files: STP Product Type Panels - Specialty Used Where Front, Rear Requires Rear Attach Point No Style Filter EIA Width 19 U 2 Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant Yes REACH Compliant Yes |
||||
| ARFA-XXX-000519 396149 |
3U Filter - 19" EIA Use with Vent Grille or Vent Panels | DWG STP |
||
|
Product Type Panels - Specialty Used Where Front, Rear Requires Rear Attach Point No Style Filter EIA Width 19 U 3 Mounting Hardware Included Included - If not installed prior to shipment. Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant Yes REACH Compliant Yes |
