GUARDIAN™ Wall Mount Server Cabinet
Swing-Out Wall Mounted Server Cabinets
GUARDIAN™ swing-out cabinets feature a hinged back allowing the cabinet to swing open for easy to access to the back section solving the everyday problems technicians have while installing and managing the immense amount of cabling that is common with datacom and telecom equipment.
GUARDIAN™ swing-out wall cabinets can function as either an open wall mount rack or a fully enclosed wall mount cabinet. They are field convertible from an open rack to cabinet, even after the initial install, by adding a front door, sides, top, and bottom panel. The 1-N’ Hung bracket, one person mounting system, is standard on GUARDIAN™ wall mount cabinets.
Fixed Wall Mounted Server Cabinets
GUARDIAN™ fixed style wall cabinets are 25″ [630 mm] deep, perfect for housing equipment such as DVR’s and patch panels that are slightly deeper than the usual IT/telecom equipment. A locking door prevents unauthorized access.
GUARDIAN™ fixed style wall mount server cabinets provide secure storage for security and telecommunications equipment in remote locations. They save floor space and are ideal for smaller installations or to house system distribution points. The 1-N’ Hung bracket, a one person mounting system, is standard on GUARDIAN™ wall mount cabinets.
Need a Wall Mounted Data Cabinet Fast?
We selected the most common sizes and paired them with the most common accessories. We call them “Pre-Configured” cabinets. Call us and we can process your order immediately – 507-287-3535.
Need a Custom Wall Mounted Data Cabinet?
We offer design services and solutions to meet the needs of any product specification. You can count on our expert resources and engineering capabilities to support any stage of your project, from concept to production. Contact us with your requirement today.
Swing Out Features
Features
- Functions as either an open rack or a fully enclosed cabinet
- Field convertible from an open rack to an enclosed cabinet – even after the initial install
- 1-N’ Hung bracket – one person mounting system
- Available in five heights; 12U, 14U, 16U, 18U, and 20U
- Standard 30″ [800 mm] depth, others including 24″ [600 mm] available
- Removable top, bottom, and side panels make for easy moves, adds, and changes
- Compatible with GapFill™ airflow management accessories
- Easily integrates with accessories such as power, cooling, and cable management
- Frame can be separated from swing-out section for faster set up or maintenance
- Three front door options; solid, vented, or window
- Field reversible doors for left or right swing
- Includes M6 hardware – (25 pk. cage nuts and screws)
Specifications
- Square hole rails – adjustable front to rear
Paint/Finish
- Color: Black
- Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish.
Load Rating
- 325 lbs. [147 kg.] Load capacity is dependent on secure mounting into proper structure.
Industry Standard
- EIA 310-E
Fixed Wall Features
Enclosed Wall Mount Cabinet Features
- 1-N’ Hung bracket – one person mounting system
- Available in five sizes; 6U, 7U, 8U, 9U, and 10U
- 25″ [630 mm] depth is perfect for equipment such as DVR’s and patch panels
- Removable front door and open access in rear
- Compatible with GapFill™ airflow management accessories
- Easily integrates with accessories such as power, cooling, and cable management
Specifications
- Rails are adjustable front to rear
- .281 thru-hole rails accept 10-32 hardware (sold separately)
Paint/Finish
- Color: Black
- Our products are finished in textured powder paint. Powder coating provides a durable high-quality finish.
Load Rating
- 250 lbs. [113 kg.] Load capacity is dependent on secure mounting into proper structure.
Industry Standards
- EIA 310-D
Installation
Installing GUARDIAN™ wall mount cabinets is a snap thanks to the one person 1-N’ Hung mounting bracket.

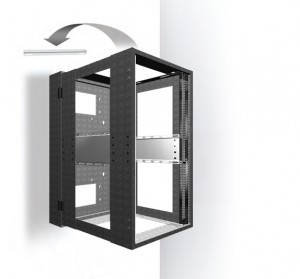

Step 1: Affix the light weight 1-N’ Hung bracket to the wall.
Step 2: Hang the cabinet on the bracket via the built in flange on the back.
-

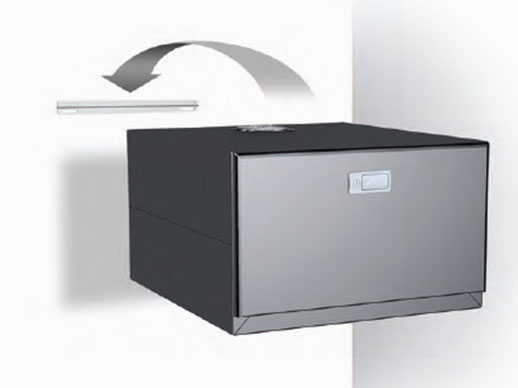

- Fixed Wall Mounted Installation
-
- Swing-Out Wall Mounted Installation
Pre-Configured
It’s about saving time without compromise —
We have selected the most common sizes and paired them with the most common accessories to provide the ultimate solution – FAST!

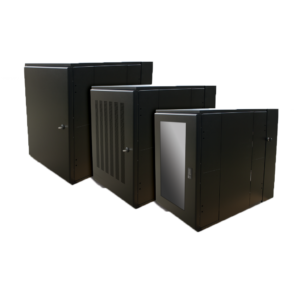

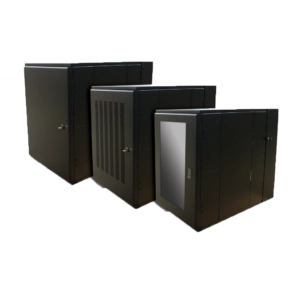

Swing-Out Wall Mounted Server Cabinets
Includes: Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Window Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), and 1-N’ Hung Mounting Bracket.
| Part Number | Rack Units |
| DMW-12U30W-G | 12U |
| DMW-14U30W-G | 14U |
| DMW-16U30W-G | 16U |
| DMW-18U30W-G | 18U |
| DMW-20U30W-G | 20U |
Includes: Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Solid Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), and 1-N’ Hung Mounting Bracket.
| Part Number | Rack Units |
| DMW-12U30W-S | 12U |
| DMW-14U30W-S | 14U |
| DMW-16U30W-S | 16U |
| DMW-18U30W-S | 18U |
| DMW-20U30S-G | 20U |
Includes: Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Vented Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), and 1-N’ Hung Mounting Bracket.
| Part Number | Rack Units |
| DMW-12U30W-V | 12U |
| DMW-14U30W-V | 14U |
| DMW-16U30W-V | 16U |
| DMW-18U30W-V | 18U |
| DMW-20U30S-V | 20U |
Fixed Wall Mounted Server Cabinets
Includes: Cabinet with Solid Sides and Provisions for Cable and Cooling, 2 Pair Thru-Hole Mounting Rails, Solid Front Door, and 1-N’ Hung Mounting Bracket.
| Part Number | Rack Units |
| DWMF-6U24-G | 6U |
| DWMF-7U24-G | 7U |
| DWMF-8U24-G | 8U |
| DWMF-9U24-G | 9U |
| DWMF-10U24-G | 10U |
GUARDIAN™ Wall Mount Server Cabinet Compatible Parts
| Select | Part Number | Description | Files | Read More |
|---|---|---|---|---|
| DEHW-1032NUT 460270 |
Hardware Kit - #10-32 Nut (50 pk) | N/A | ||
|
Files: N/A Product Type Hardware Requires Rear Attach Point No Style Hardware Kit Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| DEHW-1032SCREW-L 460272 |
Hardware Kit - #10-32 1.12" Long Screw (50 pk) | N/A | ||
|
Files: N/A Product Type Hardware Requires Rear Attach Point No Style Hardware Kit Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| DEHW-1032SCREW-S 460271 |
Hardware Kit - #10-32 .50" Short Screw (50 pk) | N/A | ||
|
Files: N/A Product Type Hardware Requires Rear Attach Point No Style Hardware Kit Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| DEHW-M6NUT 460267 |
Hardware Kit - M6 Cage Nut (50 pk) | N/A | ||
|
Files: N/A Product Type Hardware Requires Rear Attach Point No Style Hardware Kit Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| DEHW-M6SCREW-L 460269 |
Hardware Kit - M6 25mm Long Screw (50 pk) | N/A | ||
|
Files: N/A Product Type Hardware Requires Rear Attach Point No Style Hardware Kit Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| DEHW-M6SCREW-S 460268 |
Hardware Kit - M6 14mm Short Screw (50 pk) | N/A | ||
|
Files: N/A Product Type Hardware Requires Rear Attach Point No Style Hardware Kit Requires Paint No (Not Painted) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No |
||||
| DWM-12U30S-G 461355 |
Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 12U, 19" EIA HxWxD = [24.75” x 21.06” x 31.43”] [629mm x 535mm x 800mm] Weight Capacity = [325 lbs.] [147 kg.] Includes: Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Solid Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket | STP | ||
|
Files: STP Product Type Preconfigured Cabinet Preconfigured 1 Requires Rear Attach Point No EIA Width 19 U 12 Overall Height 24.75 Overall Width 21.06 Overall Depth 31.43 Weight Load Capacity 325 lbs. Requires Paint No (Black Only) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No Website Description Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 12U, 19" EIA, Solid Door on Front Ships Ships fully assembled. Contents Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Solid Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket |
||||
| DWM-12U30V-G 461356 |
Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 12U, 19" EIA HxWxD = [24.75” x 21.06” x 31.43”] [629mm x 535mm x 800mm] Weight Capacity = [325 lbs.] [147 kg.] Includes: Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Vented Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket | STP | ||
|
Files: STP Product Type Preconfigured Cabinet Preconfigured 1 Requires Rear Attach Point No EIA Width 19 U 12 Overall Height 24.75 Overall Width 21.06 Overall Depth 31.43 Weight Load Capacity 325 lbs. Requires Paint No (Black Only) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No Website Description Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 12U, 19" EIA, Vented Door on Front Ships Ships fully assembled. Contents Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Vented Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket |
||||
| DWM-12U30W-G 461350 |
Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 12U, 19" EIA HxWxD = [24.75” x 21.06” x 31.43”] [629mm x 535mm x 800mm] Weight Capacity = [325 lbs.] [147 kg.] Includes: Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Window Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket | STP | ||
|
Files: STP Product Type Preconfigured Cabinet Preconfigured 1 Requires Rear Attach Point No EIA Width 19 U 12 Overall Height 24.75 Overall Width 21.06 Overall Depth 31.43 Weight Load Capacity 325 lbs. Requires Paint No (Black Only) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No Website Description Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 12U, 19" EIA, Window Door on Front Ships Ships fully assembled. Contents Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Window Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket |
||||
| DWM-14U30S-G 460897 |
Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 14U, 19" EIA HxWxD = [28.25” x 21.06” x 31.43”] [718mm x 535mm x 800mm] Weight Capacity = [325 lbs.] [147 kg.] Includes: Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Solid Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket | STP | ||
|
Files: STP Product Type Preconfigured Cabinet Preconfigured 1 Requires Rear Attach Point No EIA Width 19 U 14 Overall Height 28.25 Overall Width 21.06 Overall Depth 31.43 Weight Load Capacity 325 lbs. Requires Paint No (Black Only) Requires Laminate No UL Listed No RoHS Compliant No REACH Compliant No Website Description Pre-Configured GUARDIAN Swing-Out Wall Mount Cabinet - 14U, 19" EIA, Solid Door on Front Ships Ships fully assembled. Contents Frame, 2 Pair Square Hole Mounting Rails, Swing-Out Back Panel, Lockable Solid Front Door, Solid Side Panels, Solid Top Panel, Solid Bottom Panel, Hardware Kit (25 pk), 1-N' Hung Mounting Bracket |
